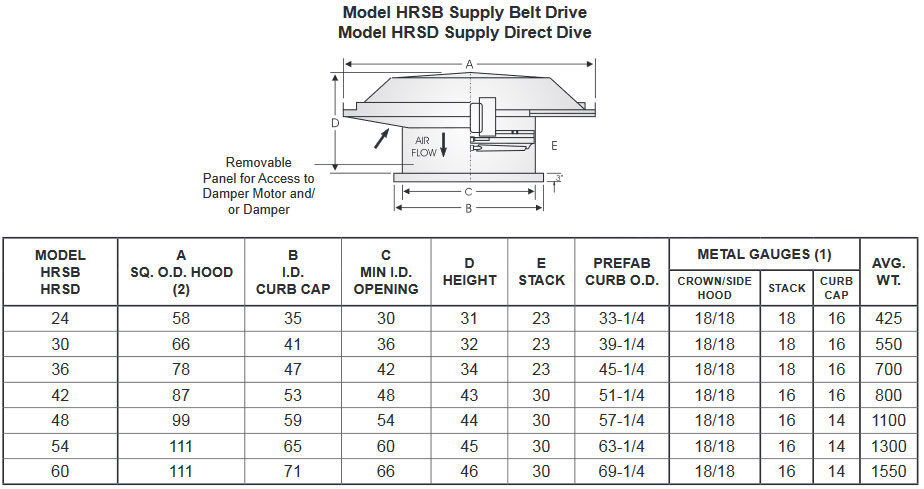

Soler & Palau USA brand Model HRSD Direct Drive Roof Mounted Propeller Supply Fan CFM Range: 2,716 to 45,039



STANDARD FEATURES:

Model HRSD is a direct drive heavy duty industrial roof mounted supply fan with a CFM range of 4,000 to over 56,000 CFM and to 3/4" static pressure. They can be used for a variety of reasons ranging from commercial and industrial operations such as machinery and equipment rooms, warehouses, manufacturing plants, assembly plants and most applications where fresh outside air is required for personal comfort and for reducing negative pressure caused by exhaust systems. Statically and Dynamically balanced long lasting cast aluminum blade assembly, 2 year fan and 1 year motor assembly. Motors rated for continuous duty. Removable panel for easy damper access. Hinged hood for easy access. Heavy gauge welded galvanized construction. Other options available such as explosion proof motors and corrosion resistant coatings.

General Catalog (1.45 MB)

Installation Operation and Maintenance Manual (470 kb)


NOTE: This Product Is Not Available to Ship to Canada
Soler & Palau USA brand Roof Mounting Curb for ARE Exhaust Fans Soler & Palau USA brand Gravity Damper for Model KSF Belt Drive Centrifugal Filtered Roof Supply Fan
 Optional Flat Roof Curb
Optional Backdraft Damper
Size 24 Model HRSD24-1/3-C
Size 24 Model HRSD24-1/3-C
HRSD24-1/3-C
425.00
(Propeller Size 24", 1/3 HP, 4,455 CFM @ 0" S.P., Single Speed, 115/208-230V/1 Ph, Totally Enclosed Fan Cooled Motor, Standard Efficiency) with Optional Motor Safety Chain
Price: $1,689.93
Size 24 Model HRSD24-1/2-C
Size 24 Model HRSD24-1/2-C
HRSD24-1/2-C
425.00
(Propeller Size 24", 1/2 HP, 5,436 CFM @ 0" S.P., Single Speed, 115/230V/1 Ph, Totally Enclosed Fan Cooled Motor, Standard Efficiency) with Optional Motor Safety Chain

Submittal Drawings & Detailed Performance Curve (633 kb)
Price: $1,729.28
Size 24 Model HRSD24-3/4-C
Size 24 Model HRSD24-3/4-C
HRSD24-3/4-C
425.00
(Propeller Size 24", 3/4 HP, 6,339 CFM @ 0" S.P., Single Speed, 115/230V/1 Ph, ODP Motor, Standard Efficiency) with Optional Motor Safety Chain

Submittal Drawings & Detailed Performance Curve (633 kb)
Price: $2,104.25
Size 24 Model HRSD24-3/4-C3
Size 24 Model HRSD24-3/4-C3
HRSD24-3/4-C3
425.00
(Propeller Size 24", 3/4 HP, 6,339 CFM @ 0" S.P., Single Speed, 208-230/460V/3 Ph, ODP Motor, Standard Efficiency) with Optional Motor Safety Chain

Submittal Drawings & Detailed Performance Curve (633 kb)
Price: $1,655.03
Size 24 Model HRSD24-1-C
Size 24 Model HRSD24-1-C
HRSD24-1-C
425.00
(Propeller Size 24", 1 HP, 6,752 CFM @ 0" S.P., Single Speed, 115/208-230V/1 Ph, ODP Motor, Standard Efficiency) with Optional Motor Safety Chain

Submittal Drawings & Detailed Performance Curve (633 kb)
Price: $2,636.62
Size 24 Model HRSD24-1-C3
Size 24 Model HRSD24-1-C3
HRSD24-1-C3
425.00
(Propeller Size 24", 1 HP, 6,752 CFM @ 0" S.P., Single Speed, 208-230/460V/3 Ph, ODP Motor, Premium Efficiency) with Optional Motor Safety Chain

Submittal Drawings & Detailed Performance Curve (633 kb)
Price: $2,003.27
Size 24 Model HRSD24-1.5-D
Size 24 Model HRSD24-1.5-D
HRSD24-1.5-D
425.00
(Propeller Size 24", 1-1/2 HP, 7,701 CFM @ 0" S.P., Single Speed, 115/208-230/1 Ph, Totally Enclosed Fan Cooled Motor, Standard Efficiency) with Optional Motor Safety Chain

Submittal Drawings & Detailed Performance Curve (633 kb)
Price: $1,776.06
Size 24 Model HRSD24-1.5-D3
Size 24 Model HRSD24-1.5-D3
HRSD24-1.5-D3
425.00
(Propeller Size 24", 1-1/2 HP, 7,701 CFM @ 0" S.P., Single Speed, 208-230/460V 3 Ph, ODP Motor, Standard Efficiency) with Optional Motor Safety Chain

Submittal Drawings & Detailed Performance Curve (633 kb)
Price: $1,660.97
Size 24 Model HRSD24-2-D
Size 24 Model HRSD24-2-D
HRSD24-2-D
425.00
(Propeller Size 24", 2 HP, 8,646 CFM @ 0" S.P., Single Speed, 208-230/460V 3 Ph, ODP Motor, Standard Efficiency) with Optional Motor Safety Chain

Submittal Drawings & Detailed Performance Curve (633 kb)
Price: $1,618.65
Size 30 Model HRSD30-3/4-B
Size 30 Model HRSD30-3/4-B
HRSD30-3/4-B
550.00
(Propeller Size 30", 3/4 HP, 9,285 CFM @ 0" S.P., Single Speed, 208-230/460V 3 Ph, ODP Motor, Standard Efficiency) with Optional Motor Safety Chain

Submittal Drawings & Detailed Performance Curve (635 kb)
Price: $2,455.45
Size 30 Model HRSD30-1-B
Size 30 Model HRSD30-1-B
HRSD30-1-B
550.00
(Propeller Size 30", 1 HP, 10,272 CFM @ 0" S.P., Single Speed, 230/460V 3 Ph, Totally Enclosed Fan Cooled Motor, Standard Efficiency) with Optional Motor Safety Chain

Submittal Drawings & Detailed Performance Curve (635 kb)
Price: $2,269.76
Size 30 Model HRSD30-2-C
Size 30 Model HRSD30-2-C
HRSD30-2-C
550.00
(Propeller Size 30", 2 HP, 13,022 CFM @ 0" S.P., Single Speed, 208-230/460V 3 Ph, ODP Motor, Premium Efficiency) with Optional Motor Safety Chain

Submittal Drawings & Detailed Performance Curve (635 kb)
Price: $1,882.98
Size 30 Model HRSD30-3-D
Size 30 Model HRSD30-3-D
HRSD30-3-D
550.00
(Propeller Size 30", 3 HP, 14,251 CFM @ 0" S.P., Single Speed, 208-230/460V 3 Ph, ODP Motor, Premium Efficiency) with Optional Motor Safety Chain

Submittal Drawings & Detailed Performance Curve (635 kb)
Price: $1,935.69
Size 36 Model HRSD36-1.5-B
Size 36 Model HRSD36-1.5-B
HRSD36-1.5-B
700.00
(Propeller Size 36", 1-1/2 HP, 16,243 CFM @ 0" S.P., Single Speed, 208-230/460V 3 Ph, ODP Motor, Standard  Efficiency) with Optional Motor Safety Chain

Submittal Drawings & Detailed Performance Curve (635 kb)
Price: $2,407.93
Size 36 Model HRSD36-2-C
Size 36 Model HRSD36-2-C
HRSD36-2-C
700.00
(Propeller Size 36", 2 HP, 17,605 CFM @ 0" S.P., Single Speed, 208-230/460V 3 Ph, ODP Motor, Premium Efficiency) with Optional Motor Safety Chain

Submittal Drawings & Detailed Performance Curve (635 kb)
Price: $2,142.86
Size 36 Model HRSD36-3-C
Size 36 Model HRSD36-3-C
HRSD36-3-C
700.00
(Propeller Size 36", 3 HP, 20,753 CFM @ 0" S.P., Single Speed, 230/460V 3 Ph, Totally Enclosed Fan Cooled Motor, Premium Efficiency) with Optional Motor Safety Chain

Submittal Drawings & Detailed Performance Curve (635 kb)
Price: $2,607.66
Size 36 Model HRSD36-5-C
Size 36 Model HRSD36-5-C
HRSD36-5-C
700.00
(Propeller Size 36", 5 HP, 24,233 CFM @ 0" S.P., Single Speed, 208-230/460V 3 Ph, Totally Enclosed Fan Cooled Motor, Premium Efficiency) with Optional Motor Safety Chain

Submittal Drawings & Detailed Performance Curve (635 kb)
Price: $2,663.35
Size 48 Model HRSD48-3-B
Size 48 Model HRSD48-3-B
HRSD48-3-B
1100.00
(Propeller Size 48", 3 HP, 29,425 CFM @ 0" S.P., Single Speed, 230/460V 3 Ph, Totally Enclosed Fan Cooled Motor, Premium Efficiency) with Optional Motor Safety Chain

Submittal Drawings & Detailed Performance Curve (635 kb)
Price: $4,718.66
Size 48 Model HRSD48-5-C
Size 48 Model HRSD48-5-C
HRSD48-5-C
1100.00
(Propeller Size 48", 5 HP, 32,676 CFM @ 0" S.P., Single Speed, 208-230/460V 3 Ph, Totally Enclosed Fan Cooled Motor, Premium Efficiency) with Optional Motor Safety Chain

Submittal Drawings & Detailed Performance Curve (635 kb)
Price: $4,555.29
Size 48 Model HRSD48-5-B
Size 48 Model HRSD48-5-B
HRSD48-5-B
1100.00
(Propeller Size 48", 5 HP, 35,739 CFM @ 0" S.P., Single Speed, 208-230/460V 3 Ph, Totally Enclosed Fan Cooled Motor, Premium Efficiency) with Optional Motor Safety Chain

Submittal Drawings & Detailed Performance Curve (635 kb)
Price: $5,892.36
Size 48 Model HRSD48-7.5-B
Size 48 Model HRSD48-7.5-B
HRSD48-7.5-B
1100.00
(Propeller Size 48", 7-1/2 HP, 41,954 CFM @ 0" S.P., Single Speed, 230/460V 3 Ph, Totally Enclosed Fan Cooled Motor, Premium Efficiency) with Optional Motor Safety Chain

Submittal Drawings & Detailed Performance Curve (635 kb)
Price: $6,421.75
Size 48 Model HRSD48-10-C
Size 48 Model HRSD48-10-C
HRSD48-10-C
1100.00
(Propeller Size 48", 10 HP, 45,039 CFM @ 0" S.P., Single Speed, 208-230/460V 3 Ph, Totally Enclosed Fan Cooled Motor, Premium Efficiency) with Optional Motor Safety Chain

Submittal Drawings & Detailed Performance Curve (635 kb)
Price: $5,730.82
