Canarm brand Model HVA Heavy Duty High Volume Industrial Reversible Belt Drive Wall Exhaust and Wall Supply Fan

Cut Sheet & Performance Chart (254 Kb)

Operation & Maintenance Manual (217 Kb)

Exhaust Fan Mounting Options (2.64 Mb)

Options:

Price: $1,510.30

Got Questions or Need a Quote? We're Ready to Help!

Description
Reviews

Model HVA - Belt Drive Wall Fans

Designed for heavy duty commercial and industrial applications.

- Factories, Warehouses, Gymnasiums, Underground parking garages, etc.

--------------------------------------------------------------------------------------------------------

Heavy duty airfoil-cast aluminum blades are standard on HVA series fans providing maximum performance at low sound levels. These fans are typically used or high volume, high static pressure applications. The HVA is designed and constructed for efficient and economical operations while maximizing performance for heavy duty applications.

OPTIONAL - Reversing fans available on 30", 36" & 42" models only. (Comes with Reversible Blades and Reversing Switch)

NOTE: When Picking the Cabinet, Back Guard and Shutter Option with a Reversible Fan, It Comes Fully Assembled Complete with Cabinet, Back Guard, Belimo Actuator Operated Powered Shutter with End Switch, Reversing Switch and Fan Disconnect Switch

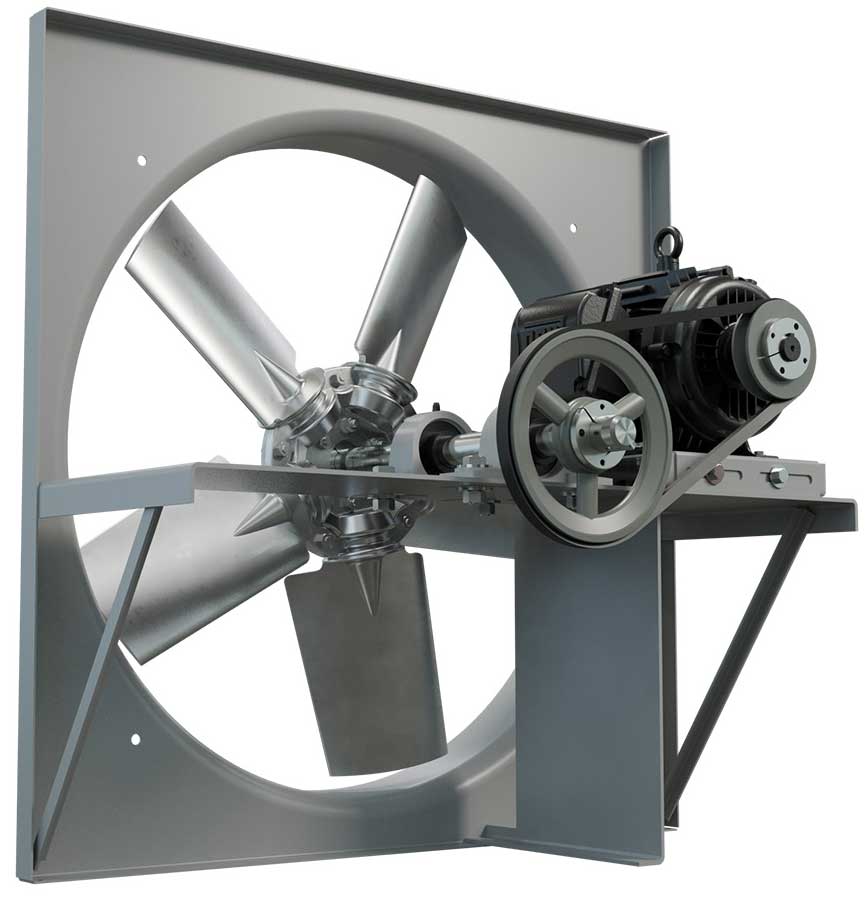

Back View	Note: Cabinet, Back Guard and Shutter Option (Dimensions Shown at Bottom of Page)

Heavy gauge steel fan panel with deep spun and flared venturi for maximum efficiency. Heavy gauge welded steel motor supports. Galvanized, heavy gauge steel blades that are statically and dynamically balanced. TEFC motors are standard. Available accessories include cabinets, sleeves, gravity dampers, motorized dampers, louvers and weather hoods.
	These fans can be combined with explosion proof motors for use in hazardous locations.
	When ordering the reversing fan with cabinet option it comes with motorized Belimo actuator and reversing switch.
	These fans are made to order and cannot be cancelled or returned.

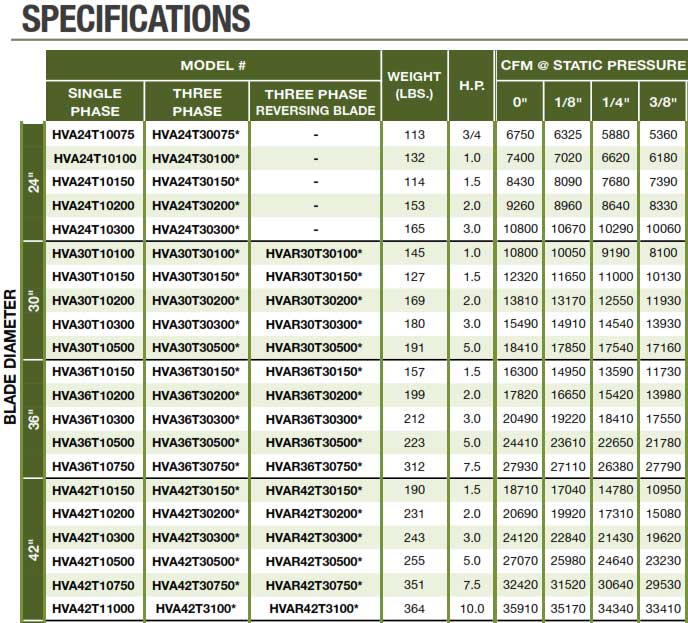

Fan blades tested in accordance with AMCA standard 210, figure 12. dBA ratings shown are measured at 0" static pressure, and should be used as guideline only.

*Three phase fans come standard as 230/460V. 208V and 575V are available

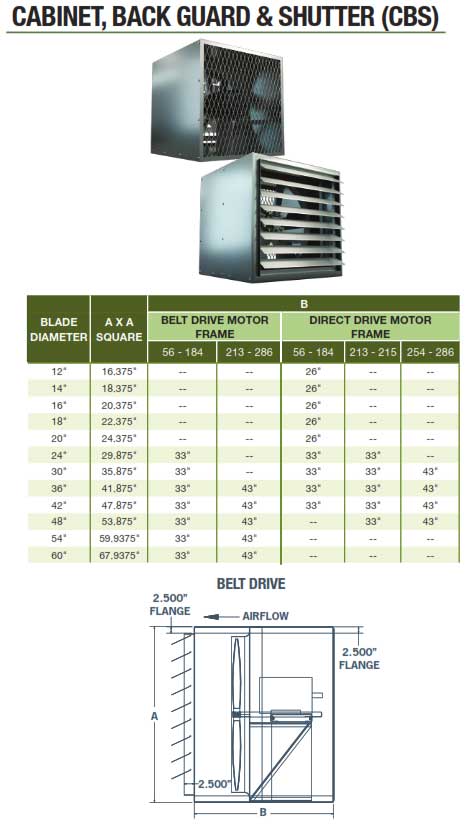

Cabinet Back Guard and Shutter Option Dimensions

Industrial Wall Exhaust Fan/Supply Fan Models HVA24T10075, HVA24T30075, HVA24T10100, HVA24T30100, HVA24T10150, HVA24T30150, HVA24T10200, HVA24T30200, HVA24T10300, HVA24T30300, HVA30T10100, HVA30T30100, HVAR30T30100, HVA30T10150, HVA30T30150, HVAR30T30150, HVA30T10200, HVA30T30200, HVAR30T30200, HVA30T10300, HVA30T30300, HVAR30T30300, HVA30T10500, HVA30T30500, HVAR30T30500, HVA36T10150, HVA36T30150, HVAR36T30150, HVA36T10200, HVA36T30200, HVA36T30200, HVA36T10300, HVA36T30300, HVAR36T30300, HVA36T10500, HVA36T30500, HVAR36T30500, HVA36T10750, HVA36T30750, HVAR36T30750, HVA42T10150, HVA42T30150, HVAR42T30150, HVA42T10200, HVA42T30200, HVAR42T30200, HVA42T10300, HVA42T30300, HVAR42T30300, HVA42T10500, HVA42T30500, HVAR42T30500, HVA42T10750, HVA42T30750, HVAR42T11000, HVAR42T31000, HVAR42T31000, HVACBS10075, HVA24CBS30075, HVA24CBS10100, HVA24CBS30100, HVA24CBS10150, HVA24CBS30150, HVA24CBS10200, HVA24CBS30200, HVA24CBS10300, HVA24CBS30300, HVA30CBS10100, HVA30CBS30100, HVAR30CBS10150, HVA30CBS30150, HVAR30CBS30150, HVA30CBS10200, HVA30CBS30200, HVAR30CBS30200, HVA30CBS10300, HVA30CBS30300, HVAR30CBS30300, HVA30CBS10500, HVA30CBS30500, HVAR30CBS30500, HVA36CBS10150, HVA36CBS30150, HVAR36CBS30150, HVA36CBS10200, HVA36CBS30200, HVA36CBS10300, HVA36CBS30300, HVAR36CBS30300, HVA36CBS10500, HVA36CBS30500, HVAR36CBS30500, HVA36CBS10750, HVA36CBS30750, HVA42CBS30750, HVA42CBS30150, HVAR42CBS10200, HVA42CBS30200, HVAR42CBS30200, HVA42CBS10300, HVA42CBS30300, HVAR42CBS30300, HVA42CBS10500, HVA42CBS30500, HVAR42CBS30500, HVA42CBS10750, HVA42CBS30750, HVAR42CBS30750, HVAR42CBS11000, HVAR42CBS31000, HVAR42CBS31000
