Canarm brand ALX-UB Series Belt Drive Upblast Aluminum Roof Exhaust Fan

Options:

Price: $929.97

ALX-UB Series: Belt DRIVE UPBLAST SPUN ALUMINUM EXHAUSTERS (Restaurant Rated)

FEATURES

Aluminum backward inclined wheel is non-overloading.
Available with a variety of field or factory installed 1 phase & 3 phase motors.

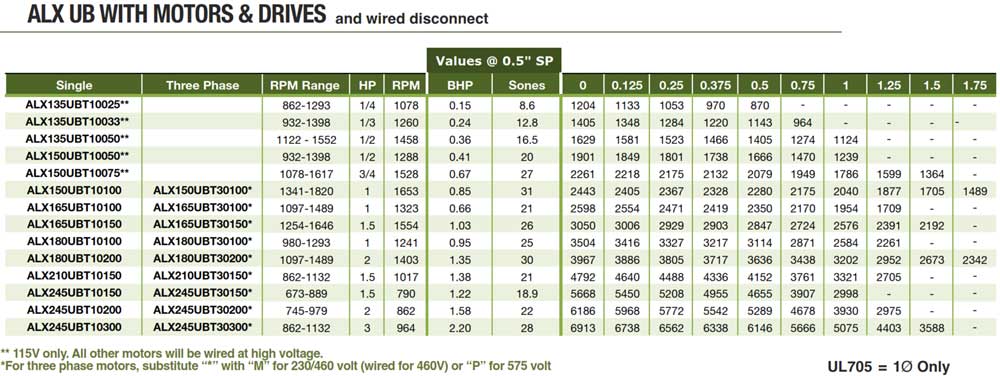

TYPICAL MAXIMUM CFM @ STATIC PRESSURE
Model	HP	0”SP	.5”SP	1”SP	1.25”SP
SINGLE PHASE AND WIRED DISCONNECT
ALX135UBT10025**	1/4	1285	892	--	--
ALX135UBT10033**	1/3	1498	1182	--	--
ALX135UBT10050**	1/2	1662	1377	974	--
ALX150UBT10050**	3/4	1976	1591	--	--
ALX150UBT10075**	3/4	2320	2008	1584	1264
ALX150UBT10100	1	2502	2225	1846	1612
ALX165UBT10100	1	2637	2285	1804	1497
ALX165UBT10150	1.5	3067	2779	2416	2197
ALX180UBT10100	1	3402	2984	2429	1961
ALX180UBT10200	2	3969	3612	3164	2893
ALX210UBT10150	1.5	4771	4172	3387	2785
ALX245UBT10150	1.5	5701	4615	2885	--
ALX245UBT10200	2	6202	5250	3901	2850
ALX245UBT10300	3	6954	6103	5046	4375
THREE PHASE WITH NO DISCONNECT
ALX150UB30100M	1	2502	2225	1846	1612
ALX165UB30100M	1	2637	2285	1804	1497
ALX165UB30150M	1.5	3067	2779	2416	2197
ALX180UB30100M	1	3402	2984	2429	1981
ALX180UB30200M	2	3969	3612	3164	2893
ALX210UB30150M	1.5	4771	4172	3387	2785
ALX245UB30150M	1.5	5701	4615	2885	--
ALX245UB30200M	2	6202	5250	3901	2850
ALX245UB30300M	3	6954	6103	5046	4375
