Canarm brand ALX-UD Series Direct Drive Upblast UL705 Restaurant Rated Centrifugal Spun Aluminum Roof Exhaust Fan

Cut Sheet & Performance Chart (634 Kb)

Operation & Maintenance Manual (217 Kb)

Options:

Price: $470.21

Got Questions or Need a Quote? We're Ready to Help!

Description
Reviews

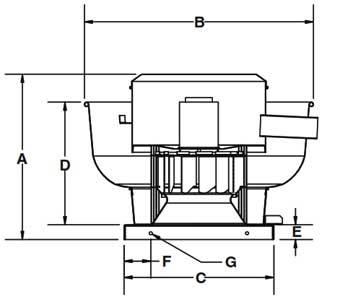

ALX-UD Series: DIRECT DRIVE UPBLAST SPUN ALUMINUM EXHAUSTERS (Restaurant Rated)

FEATURES

Spun aluminum housing will not rust, chip or peel.

Aluminum backward inclined wheel is non-overloading.

Available with PSC or EC Motors.

Variable speed PSC motors available on ALX 090/105/120/135

All motors are 1 Phase 120/240V operation can be operated at 50 or 60 Hz.

All units can be wall mounted.

Quick release latches for easy motor access on ALX135-ALX165.

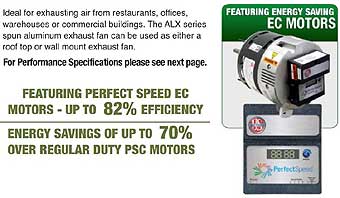

EC MOTORS ONLY

EC motors offer true variable speed operation and up to 70% energy savings over PSC motors.

On-board speed adjustment allows simple setup and balancing with LED display.

Can be controlled remotely up to 50' using a remote mount potentiometer or 0-10V.

TYPICAL MAXIMUM CFM @ STATIC PRESSURE

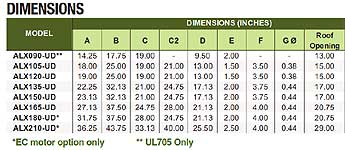

Model	HP	Variable Speed	0”SP	1/4”SP	1/2”SP
ALX090-UD008V***	1/12	Y	525	425	340
ALX105-UD013V	1/8	Y*	950	850	725
ALX105-UD033EC	1/3	Y	1051	954	866
ALX120-UD033V	1/3	Y*	1400	1300	1175
ALX120-UD050EC	1/2	Y	1548	1422	1282
ALX135-UD050V	1/2	Y**	1950	1900	1800
ALX135-UD033EC	1/3	Y	1578	1491	1346
ALX135-UD050EC	1/2	Y	1850	1775	1650
ALX135-UD075EC	3/4	Y	2100	2000	1900
ALX150-UD100S	1	N	1650	2375	2275
ALX150-UD033EC	1/3	Y	1735	1594	1403
ALX150-UD050EC	1/2	Y	2003	1934	1754
ALX150-UD075EC	3/4	Y	2353	2261	2161
ALX150-UD100EC	1	Y	2544	2462	2361
ALX165-UD150S	1 1/2	N	3400	3300	3200
ALX165-UD050EC	1/2	Y	2595	2372	2155
ALX165-UD075EC	3/4	Y	2965	2780	2579
ALX165-UD100EC	1	Y	2974	2870	2767
ALX180-UD100EC	1	Y	3400	3200	3000
ALX210-UD100EC	1	Y	4300	4000	3725

EC motors can be controlled using the built-in potentiometer on motor or by using a 0 to 10 V controller, or by a remote potentiometer.
*Using MC5 (for 115V or MC5-230 (for 230V)
** Using MC10 (for 115V or MC5-230 (for 230V)
*** UL705 Only Minimum motor speed 425 RPM (EC Models)
