Soler & Palau USA brand Variable Speed Inline Mixed Flow Fan CFM Range: 97-1,050 (4"-12.4" Dia.)
TD-MIXVENT SERIES

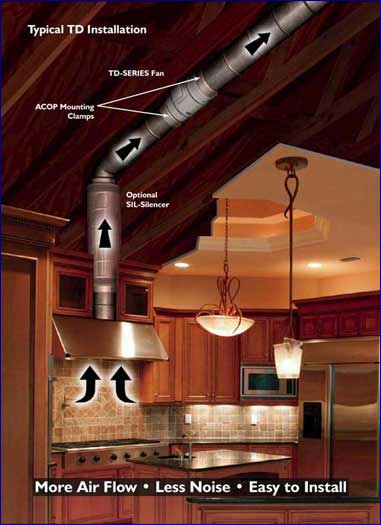

Compact Size-TD Fans require minimum space.The S&P TD-MIXVENT series of in-line duct fans have been specially designed to maximize the airflow performance with minimal noise levels within the smallest and most compact of housing sizes. This makes the TD-MIXVENT series the ultimate solution for small to medium sized ventilation installations which require a high airflow to pressure ratio and occupy only the minimum space possible. Example: false ceiling voids, cabinets and many other limited space environments.
Easy to Install...fit and forget!
All the models in the TD-MIXVENT range have been designed with the professional contractor/engineer in mind. All models include a “removable body” feature that enables the motor-impeller assembly to be completely removed or replaced without the need to interfere with the attached ducting.
Multitude of features-high specification
All models within the TD-MIXVENT range incorporate a powerful mixed flow impeller and internal air vanes located at the discharge end of the fan housing. This impeller and guide vane combination provides a smooth laminar air flow which in turn minimizes turbulence and noise, and generates an excellent air flow to pressure performance ratio.
Description
The MIXVENT system has been designed to compliment the TD-MIXVENT range of in-line fans. All of the TD-fans include the combination of a powerful motor, factory installed, to a mixed flow impeller. This motor and impeller combination enables the TD-fans to deliver high airflow performances with minimum noise generation against high static pressures typically found in ducted ventilation systems. The unique design of the support brackets, allows the motor and impeller assembly to be fitted or removed without dismantling the adjacent ducting and therefore, facilitating any installation or maintenance. The internal aerodynamic design of the TD-MIXVENT fan enables the unit to generate large air volumes and pressures with the minimum of in-duct or radiated noise. As an additional standard advantage, TD-MIXVENT fans are fitted with a direct connection two-speed motor. The TD-fans offer the ideal in-line duct fan solution for a wide range of HVAC ventilation applications.
|
Model Number |
Nom. RPM |
Volts |
Max. Watts |
Speed
|
CFM v Static Pressure (SP) WG |
Max. SP |
Max Operating Temp. (°F) |
Wgt. (lbs) |
Duct Dia. Ins. |
||||||
|
0"
|
0.125" | 0.25" | 0.375" | 0.5" | 0.75" | 1.0" | |||||||||
|
TD-100
|
2431 | 120 | 23 | LS | 97 | 81 | 51 | -- | -- | -- | -- | .4 | 104 | 2 | 4" |
| 2516 | 120 | 26 | HS | 101 | 85 | 57 | -- | -- | -- | -- | .4 | 104 | 2 | 4" | |
| TD-100x | 1556 | 120 | 20 | LS | 100 | 77 | 48 | -- | -- | -- | -- | .375 | 104 | 4.4 | 4" |
| 2096 | 120 | 33 | HS | 135 | 113 | 90 | 53 | -- | -- | -- | .55 | 104 | 4.4 | 4" | |
| TD-125 | 1633 | 120 | 24 | LS | 149 | 110 | 73 | -- | -- | -- | -- | .35 | 104 | 4.4 | 5" |
| 2146 | 120 | 38 | HS | 197 | 168 | 133 | 86 | 22 | -- | -- | .55 | 104 | 4.4 | 5" | |
| TD-150 | 1709 | 120 | 54 | LS | 218 | 193 | 163 | 128 | 105 | 24 | -- | .8 | 140 | 4.4 | 6" |
| 2289 | 120 | 65 | HS | 293 | 273 | 250 | 227 | 206 | 131 | 35 | 1.15 | 140 | 4.4 | 6" | |
| TD-200 | 2322 | 120 | 139 | LS | 476 | 422 | 373 | 317 | 260 | 40 | -- | 1.38 | 140 | 8.8 | 8" |
| 2781 | 120 | 184 | HS | 538 | 495 | 458 | 418 | 367 | 190 | 10 | 1.625 | 140 | 8.8 | 8" | |
| TD-250 | 2400 | 115 | 162 | LS | 541 | 475 | 418 | 355 | 295 | 218 | 170 | 2.03 | 140 | 19.8 | 10" |
| 3200 | 115 | 241 | HS | 754 | 715 | 680 | 640 | 606 | 520 | 405 | 2.53 | 140 | 19.8 | 10" | |
| TD-315 | 2000 | 115 | 208 | LS | 751 | 670 | 545 | 420 | 285 | 190 | 130 | 1.62 | 140 | 30.9 | 12.4" |
| 2500 | 115 | 335 | HS | 1050 | 990 | 932 | 850 | 770 | 600 | 420 | 2.95 | 140 | 30.9 | 12.4" | |
NOTE: This Product Is Not Available to Ship to Canada.
|
Model Number |
X |
A |
B |
C |
D |
E |
F |
G |
H |
|
TD-100
|
5 15/16" | 9 1/8" | 5 7/16" | 3 3/4' | 3 7/8" | 3 1/4" | 3 3/4" | 1 7/8" | 2 1/16" |
| TD-100x | 7 3/8" | 11 15/16" | 6 15/16" | 4 1/2" | 3 13/16" | 3 15/16" | 3 9/16" | 3 1/8" | 2 3/8" |
| TD-125 | 7 3/8" | 10 3/16" | 6 15/16" | 4 1/2" | 4 13/16" | 3 15/16" | 3 9/16" | 3 1/8" | 2 3/8" |
| TD-150 | 8 3/8" | 11 5/8" | 7 7/8" | 5" | 5 13/16" | 4 7/16" | 5 1/8" | 3 1/8" | 2 3/8" |
| TD-200 | 9 3/16" | 11 7/8" | 8 9/16" | 5 9/16" | 7 13/16" | 4 7/8" | 5 1/2" | 3 15/16" | 3 11/16" |
| TD-250 | 11 7/16" | 15 3/16" | 10 11/16" | 7 9/16" | 9 3/4" | 6 1/8" | 6 5/8" | 5 11/16" | 5 1/2" |
| TD-315 | 14" | 17 11/16" | 13 1/4" | 8 13/16" | 12 5/16" | 7 3/8" | 8 1/4" | 7 3/16" | 7" |
*All models include a direct two speed motor connection.
Low profile mixed flow fans, manufactured in plastic material (up to model 200) or in galvanized steel sheet protected with Epoxy paint (model 250 and 315), with external terminal box, removable motor-impeller assembly and adjustable single-phase motor, Class B, IP44.
