TXB Upblast Belt Drive Centrifugal Restaurant/Utility Exhaust Fan

Price: $648.72

SKU: This Product Has Been Discontinued

Got Questions or Need a Quote? We're Ready to Help!

Description
Reviews

Model TXB Fans are Discontinued and are Now Replaced by Model STXB Exhaust Fans Click Here

Application

Model TXB belt drive fans are roof mounted centrifugal upblast exhausters rated from 250 to 35,000 CFM with static pressure capabilities to 3-1/4 inches.All fans are factory test run for quality assurance.

The TXB was designed with serviceability in mind. The motor compartment can be serviced through the removable top, or the motor housing can be removed by loosening four nuts. Soler & Palau USA’s optional “Grease Grabber” is an inexpensive and easy solution to grease containment. The Grease Grabber media allows water to drain away while grease is contained.

Isolation of motor and drive components from the airstream and the high velocity vertical air discharge make the Model TXB ideally suited for the removal of dirty contaminated and/or high temperature air from processes and buildings. Typical applications include restaurant hoods and similar kitchen exhaust ventilation, fume and smoke removal, laboratory fume hood exhaust and chemical process exhaust. All TXB fans are designed and manufactured for high performance and long life. Soler & Palau USA covers the TXB with a 5 year fan warranty and a 1 year motor warranty. TXB-UL762 units have a 1 year fan and motor warranty. Heavy-gauge materials are used throughout the TXB. The spun inlet and shroud design provide excellent air moving efficiencies. The motor brackets are heavy-gauge steel, and isolated from the unit to eliminate

unwanted vibration and noise transmission. For companion direct drive upblast fans, see the Model TXD with it's complementing design. There is no finer centrifugal upblast made period.

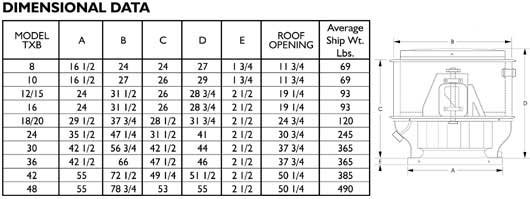

CONSTRUCTION

Housing
• Curb cap with integral deep single piece spun inlet for efficient performance and prevention of leakage into ductwork.
• Heavy-gauge aluminum housing and curb cap for strength and rigidity. Curb cap is galvanized steel on all UL 762 units.
• Adjustable motor base for proper belt tension and ease of adjustment.
• Enclosed ventilated motor/drive compartment isolates motor and drives from exhaust air.
• Neoprene isolators for reduction of vibration and sound.
• The motor compartment housing easily removes with a minimum of tools for complete maintenance access.
• Water-tight conduit tube for easy electrical connection without having to wire through the breather tube.
• Birdscreen and disconnect are included on standard models (Disconnects not included on 2 speed and explosion proof units).
• Birdscreen not included on UL762 units.

Centrifugal Wheel

• Backward inclined for efficiency at higher static pressure.
• Nonoverloading for safe operation in ducted systems.
• Heavy aluminum hub for extra strength.
• Close running tolerance between inlet cone and wheel inlet for maximum efficiency.
• Statically and dynamically balanced for smooth quiet operation.

Motors

• Brands are nationally recognized and locally serviced.
• Single speed drip-proof motors are provided on standard models.
• Disconnect switch is standard with single speed motors.
• Welded motor brackets designed for maximum strength.

Drives
• Sized for minimum 150% of drive horse power.
• Machined cast iron adjustable motor pulleys.
• Adjustable base for belt tensioning.
• Nonstatic oil resistant V-Belts.

ACCESSORIES

Roof Curb, Motor Operated Damper, Automatic Damper,
Aluminum Grease Trough, Wall Mount Kit, Special Coatings,
Birdscreen, Hinged Curb Cap.

*Comes with a 5 Year Fan Warranty and a 1 Year Motor Warranty.

**Models with 6" and 8" wheel diameters are not suitable for restaurant applications.
