Soler & Palau brand Model STXB Centrifugal Roof and Sidewall Mount UL762 Upblast Exhaust Fan (833 CFM to 3,975 CFM Range)

Options:

Price: $903.23

SKU: STXB08RHULML1S

Got Questions or Need a Quote? We're Ready to Help!

Description
Reviews

APPLICATION

Isolation of motor and drive components from the air stream an the high velocity vertical air discharge make the model STXB-UL762 ideally suited for the removal of dirty, contaminated and/or high temperature air from processes and buildings. Typical applications include restaurant hoods and similar kitchen exhaust ventilation, fume and smoke removal, laboratory fume hood exhaust and chemical process exhaust.

For grease removal applications the fan must be installed per NFPA 96 and with a 40" discharge height and hinged access base.

Product Bulletin (648 kb)

Roof Curb (660 kb)

Installation Operation and Maintenance Manual (703 kb)

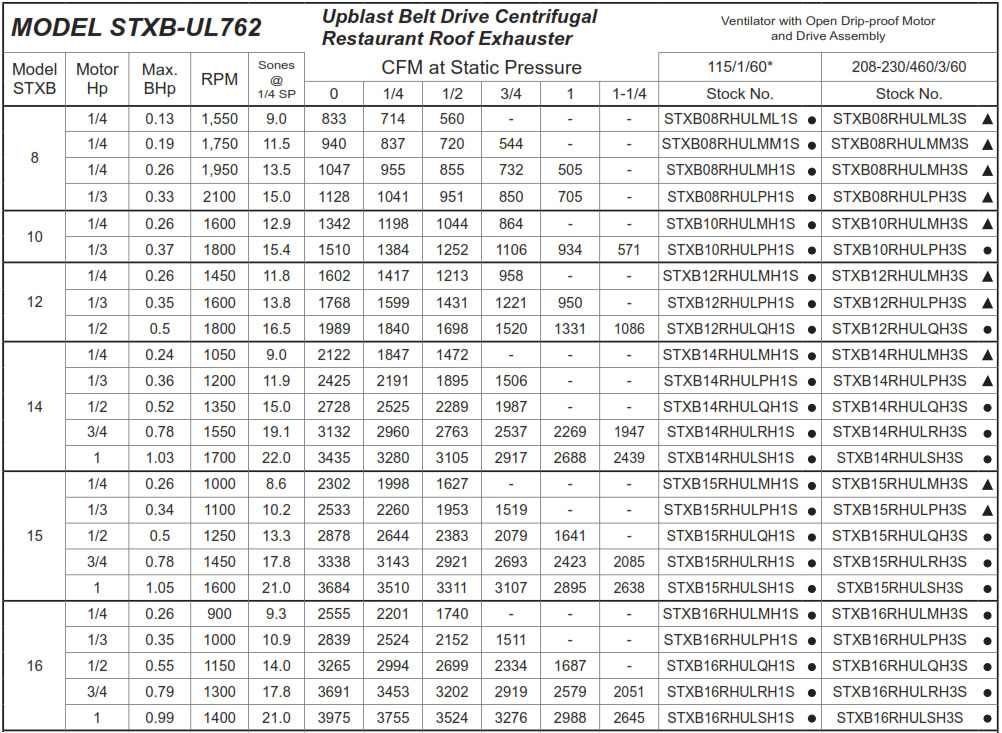

Power ratings (BHP) do not include transmission losses.
Performance certified is for installation type A-free inlet, free outlet.
Performance ratings do not include the effects of bird screen in the air stream.

The sound ratings shown are the loudness values in the fan sones @ 5' (1.5m) in an hemispherical fee field calculated per AMCA Standard 301. Installation Type A: free inlet hemispherical sone levels.

*Tri-voltage (115-208-230) is standard on 3/4 through 1 1/2 Hp Single phase motors. Tri-voltage is available for the 1/2 Hp motors.

NOTE: This Product Is Not Available to Ship to Canada

CONSTRUCTION

Housing

• Heavy-gauge aluminum for extra strength with prepunched mounting holes.

• Neoprene isolators for reduction of vibration and sound.

• Enclosed, ventilated motor/drive compartment isolates motor and drives from exhaust air.

• Cover easily removed for quick access electrical connection.

• The motor compartment housing easily removes for complete maintenance access.

• Water-tight conduit tube for easy electrical connection.

• External weather proof disconnect is included on standard models

• Lifting lugs for easy and safe placement on roof.

Centrifugal Wheel

• All aluminum backward inclined wheel.

• Nonoverloading for safe operation in ducted systems.

• Dynamically balanced for smooth operation.

Drives

• Sized for minimum 150% of drive horsepower.

• Machined cast iron adjustable motor pulleys.

• Adjustable base for belt tensioning.

• Nonstatic oil resistant v-belts.

Motors

• Single speed open drip-proof are standard.

• All motors are rated for continuous duty.

• 182T and larger motors shipped unmounted for field installation.

• Disconnect switch standard with single speed drip-proof motors.

Bearings

• Heavy-duty ball bearing type.

• Pre-lubricated and permanently sealed.

Soler & Palau USA Models STXB08RHULML1S, STXB08RHULML3S, STXB08RHULMM1S, STXB08RHULMM3S, STXB08RHULMH1S, STXB08RHULMH3S, STXB08RHULPH1S, STXB08RHULPH3S, STXB10RHULMH1S, STXB10RHULMH3S, STXB10RHULPH1S, STXB10RHULPH3S, STXB12RHULMH1S, STXB12RHULMH3S, STXB12RHULPH1S, STXB12RHULPH3S, STXB12RHULQH1S, STXB12RHULQH3S, STXB14RHULMH1S, STXB14RHULMH3S, STXB14RHULPH1S, STXB14RHULPH3S, STXB14RHULQH1S, STXB14RHULQH3S, STXB14RHULRH1S, STXB14RHULRH3S, STXB14RHULSH1S, STXB14RHULSH3S, STXB15RHULMH1S, STXB15RHULMH3S, STXB15RHULPH1S, STXB15RHULPH3S, STXB15RHULQH1S, STXB15RHULQH3S, STXB15RHULTH1S, STXB15RHULRH3S, STXB15RHULSH1S, STXB15RHULSH3S, STXB16RHULMH1S, STXB16RHULMH3S, STXB16RHULPH1S, STXB16THULPH3S, STXB16RHULQH1S, STXB16RHULQH3S, STXB16RHULRH1S, STXB16RHULRH3S, STXB16RHULSH1S, STXB16RHULSH3S
