Canarm Ltd. brand Model DDS: Direct Drive Industrial Wall Exhaust Fan Single or Three Phase CFM Range: 940 - 32,563 (Sizes 12" thru 48")
Cut Sheet & Performance Chart (254 Kb) Operation & Maintenance Manual (217 Kb) Exhaust Fan Mounting Options (2.64 Mb)
Price:
$865.53
Model DDS - Direct Drive Wall Fans
The DDS wall exhaust fan is designed for general ventilation in heavy duty commercial and industrial applications including factories, warehouses, gymnasiums, underground parking garages, etc. The DDS fan utilizes a steel fan blade for efficient and economical operations and is direct drive, therefore requiring little or no maintenance.
|
|

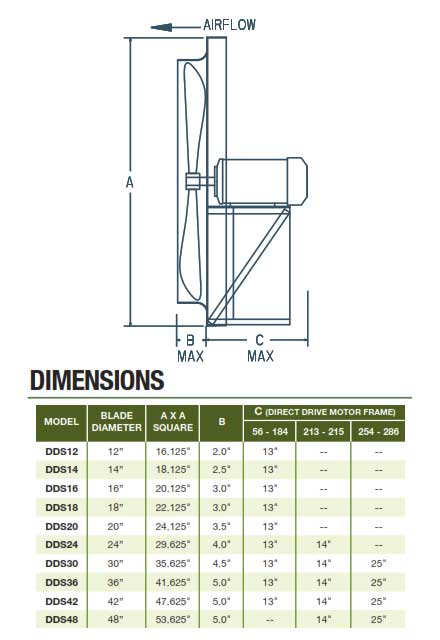

Back View |
|
|
| Leader Fan Number |
Blade Dia. |
RPM | H.P | CFM @ Static Pressure |
dBA @ 5 Ft. |
|||
| Single Phase | Three Phase | 0" | 1/8" | 1/4" | ||||
|
DDS12T1033C
DDS12T1033B
|
DDS12T3033C
DDS12T3033B
|
12"
|
1140
1750
|
1/3
1/3
|
940
1422
|
647
1285
|
325
1062
|
53
65
|
|
DDS14T1033C
DDS14T1033B
|
DDS14T3033C
DDS14T3033B
|
14"
|
1140
1750
|
1/3
1/3
|
1346
2037
|
1082
1879
|
624
1705
|
58
67
|
|
DDS16T1033C
DDS16T1033B
|
DDS16T3033C
DDS16T3033B
|
16"
|
1140
1750
|
1/3
1/3
|
1981
2992
|
1660
2841
|
1064
2607
|
63
72
|
|
DDS18T1033C
DDS18T1050B
|
DDS18T3033C
DDS18T3050B
|
18"
|
1140
1750
|
1/3
1/2
|
2654
4016
|
2331
3816
|
1606
3594
|
64
74
|
|
DDS20T1033C
DDS20T1100B
|
DDS12T3033C
DDS20T3100B
|
20"
|
1140
1750
|
1/3
1
|
3561
5389
|
3210
5162
|
2734
4926
|
69
78
|
|
DDS24T1075C
DDS24T1100B
DDS24T1300B
|
DDS24T3075C
DDS24T3100B
DDS24T3300B
|
24"
|
1140
1750
1750
|
3/4
1
3
|
6549
6761
9909
|
6017
6453
9558
|
5527
6128
9207
|
73 81 84 |
|
DDS30T1500B
|
DDS30T3150C
DDS30T3500B
|
30"
|
1140
1750
|
1.5
5
|
11600
17552
|
10925
17106
|
10193
16661
|
79
90
|
|
DDS36T3200D
DDS36T3500C
|
36"
|
860
1140
|
2
5
|
16364
21692
|
15172
20793
|
13864
19893
|
80
88
|
|
|
DDS42T3500D
DDS42T3500C
|
42"
|
860
1140
|
5
5
|
24499
23209
|
23193
22619
|
21957
21962
|
85
88
|
|
|
DDS48T3750D
DDS48T3750C
|
48"
|
860
1140
|
7.5
7.5
|
35654
32563
|
33411
31677
|
31857
30688
|
89
92
|
|
Fan blades tested in accordance with AMCA standard 210, figure 12.
dBA ratings shown are measured at 0" static pressure and should be used as guideline only.
 |
*IMPORTANT: SINGLE PHASE IS AVAILABLE IN 120V ONLY THREE PHASE IS AVAILABLE IN 208V/230V/460V or 575V
