Canarm Ltd. brand Model P (Single/Variable Speed) Single Phase Panel Mount Direct Drive Wall Exhaust Fan CFM Range: 1,650 - 5,500 (9 Different Models - Sizes 12" thru 24")
Model P panel mount wall exhaust fans are sturdily constructed, direct drive, horizontal discharge for industrial, commercial and farm applications. The wall exhaust fans on this page are designed to work with a wall mounted speed control (dimmer switch).

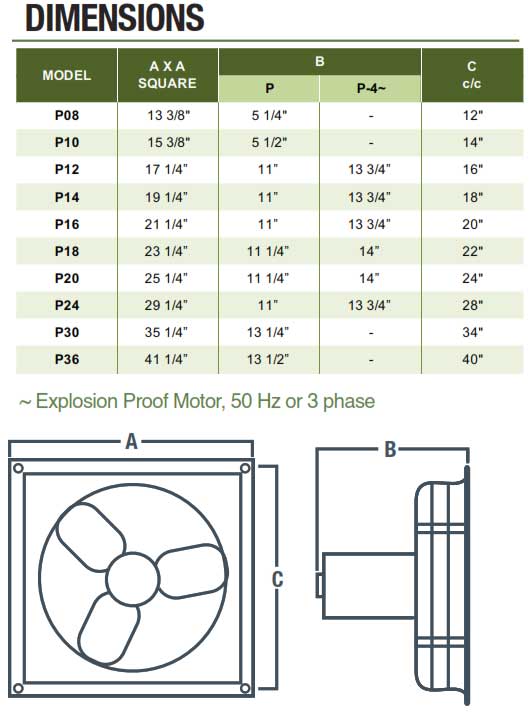

Inlet Side View
 |
|
| Leader Fan Number | Blade Dia. | H.P. | Volts | CFM @ Static Pressure | |||
| 0" | 0.1" | 0.125" | 0.250" | ||||
| Single Speed/Variable Speed Fans | |||||||
| P12-1V | 12" | 1/3 | 115/230 | 1,650 | 1,560 | 1,525 | 1,400 |
| P12-1VHE | 12" | 1/15 | 115 | 1,350 | 1,290 | 1,275 | 1,150 |
| P14-1V | 14" | 1/3 | 115/230 | 2,170 | 2,030 | 1,950 | 1,900 |
| P14-1VHE | 14" | 1/15 | 115 | 1,600 | 1,525 | 1,500 | 1,300 |
| P16-1V | 16" | 1/3 | 115/230 | 2,570 | 2,470 | 2,410 | 2,260 |
| P16-1VHE | 16" | 1/15 | 115 | 1,850 | 1,750 | 1,700 | 1,550 |
| P18-1V | 18" | 1/3 | 115/230 | 3,150 | 3,000 | 2,900 | 2,575 |
| P20-1V | 20" | 1/3 | 115/230 | 3,620 | 3,420 | 3,340 | 3,120 |
| P24-1V | 24" | 1/3 | 115/230 | 5,500 | 5,400 | 5,310 | 5,100 |
