Canarm Ltd. brand Model AX (Single/Variable Speed) Single Phase Heavy Duty Industrial Wall Exhaust Fan (Shutter Mount Direct Drive) CFM Range: 1350 - 5,500 (Sizes 12"- 24")
Price:
$354.77
|

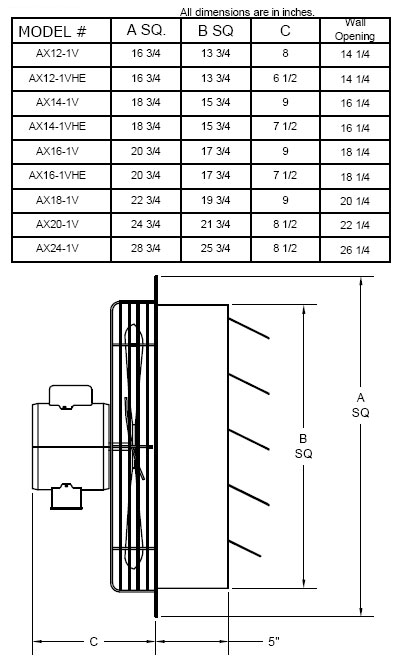

Intake Side View
|
Fan Number |
Blade Dia. |
H.P. |
Volts |
CFM @ Static Pressure |
Weight LBS. |
||
|
0" |
0.1" |
0.125" |
|||||
|
Single Speed/Variable Speed Fans |
|||||||
|
AX12-1V |
12" |
1/3 |
115/230 |
1,650 |
1,560 |
1,525 |
26 |
|
AX12-1VHE |
12" |
1/15 |
115 |
1,350 |
1,290 |
1,275 |
22 |
|
AX14-1V |
14" |
1/3 |
115/230 |
2,170 |
2,030 |
1,950 |
29 |
|
AX14-1VHE |
14" |
1/15 |
115 |
1,600 |
1,525 |
1,500 |
25 |
|
AX16-1V |
16" |
1/3 |
115/230 |
2,570 |
2,470 |
2,410 |
30 |
|
AX16-1VHE |
16" |
1/15 |
115 |
1,850 |
1,750 |
1,700 |
26 |
|
AX18-1V |
18" |
1/3 |
115/230 |
3,150 |
3,000 |
2,900 |
36 |
|
AX20-1V |
20" |
1/3 |
115/230 |
3,620 |
3,420 |
3,340 |
39 |
|
AX24-1V |
24" |
1/3 |
115/230 |
5,500 |
5,400 |
5,310 |
43 |
*Note: All fans with a "V" in their fan number are variable speed. Model CN5041 or MVS-5 variable speed control must be ordered to operate the fans as variable speed. When using the AX fan with a variable speed controller, care should be taken not to reduce the speed too low. If the airflow is reduced significantly the shutters may not open properly. This may cause motor problems.
