Exhaust Fans → Wall Mount Exhaust Fans → Guard Mount Wall Exhaust Fans → TPI Corporation brand Model CE (Two or Three Speed) Guard Mount Direct Drive Wall Exhaust Fan CFM Range: 1325 - 7900 (Sizes 10" thru 30")

TPI Corporation brand Model CE (Two or Three Speed) Guard Mount Direct Drive Wall Exhaust Fan CFM Range: 1325 - 7900 (Sizes 10" thru 30")



Bolts directly to the wall
Can be used with or without external shutter


  • MOTOR..............120V, 1-phase totally enclosed permanently lubricated - UL listed.
  • 1/20 HP Motor....is 3-speed sleeve bearing permanent split capacitor.
  • 1/8 HP Motor......is 3-speed sleeve bearing permanent split capacitor.
  • 1/4 HP Motor.....is 2-speed ball bearing permanent split capacitor.
  • SWITCH.............Pull Chain
  • CORD.................NONE - Junction box provided for direct wiring.
  • GUARDS.............Steel spiral wire.
  • BLADE................Aluminum.
  • MADE..................in U.S.A. with domestic and foreign components.

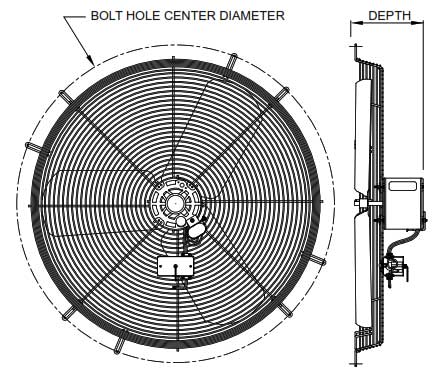

FAN DIMENSIONS (inches)
SIZE BOLT HOLE CENTERDIAMETER DEPTH

10"

14.14"

 7.15"

12"

16.46"

 8.52"

14"

18.30"

 8.70"

16"

20.34"

 8.70"

18"

22.64"

 8.52"

20"

25.46"

 8.70"

24"

29.08"

 8.52"

30"

34.89"

 8.53"

Note: Rough in hole size is 1/2" inch larger than fan blade size.




Printable Manual (341.0 kb)

SIZE

MODEL

NUMBER

MOTOR

HP

 CFM / RPM

AMPS

 VOLTS

SHIPPING

WEIGHT
HIGH MED LOW

10"

 CE 10-D 1/20

680 / 1560

540 / 1250

 460 / 1080 0.8 120 11
12" CE 12-D 1/20

825 / 1560

710 1250

 560 / 1080 0.8 120 12
14" CE 14-D 1/8

1520 / 1660

1400 / 1550

 1250 / 1370 1.7 120 17
16" CE 16-D 1/8

2100 1660

1900 / 1550

 1700 / 1370 1.7 120 18
18" CE 18-D 1/8

2300 / 1660

2100 /1050

 1850 /1370 1.7 120 19
20" CE 20-D 1/4

2925 / 1140

-

 2380 /1070 3.2 120 34
24" CE 24-D 1/4

3400 / 1140

-

 2770 / 1070 3.2 120 38
30" CE 30-D 1/4

3950 / 1140

-

 3080 / 1070 3.2 120 42
Model #CE 10-D (10" Size, 1/20 HP, 120V, 3-Speed, 680/540/460 CFM)
Model #CE 10-D (10" Size, 1/20 HP, 120V, 3-Speed, 680/540/460 CFM)
CE 10-D
11.00



Price: $231.98
Model #CE 12-D (12" Size, 1/20 HP, 120V, 3-Speed, 825/710/560 CFM)
Model #CE 12-D (12" Size, 1/20 HP, 120V, 3-Speed, 825/710/560 CFM)
CE 12-D
12.00



Price: $261.40
Model #CE 14-D (14" Size, 1/8 HP, 120V, 3-Speed, 1520/1400/1250 CFM)
Model #CE 14-D (14" Size, 1/8 HP, 120V, 3-Speed, 1520/1400/1250 CFM)
CE 14-D
17.00



Price: $277.81
Model #CE 16-D (16" Size, 1/8 HP, 120V, 3-Speed, 2100/1900/1700 CFM)
Model #CE 16-D (16" Size, 1/8 HP, 120V, 3-Speed, 2100/1900/1700 CFM)
CE 16-D
18.00



Price: $290.26
Model #CE 18-D (18" Size, 1/8 HP, 120V, 3-Speed, 2300/2100/1850 CFM)
Model #CE 18-D (18" Size, 1/8 HP, 120V, 3-Speed, 2300/2100/1850 CFM)
CE 18-D
19.00



Price: $318.55
Model #CE 20-D (20" Size, 1/4 HP, 120V, 2-Speed, 2925/2380 CFM)
Model #CE 20-D (20" Size, 1/4 HP, 120V, 2-Speed, 2925/2380 CFM)
CE 20-D
34.00



Price: $404.07
Model #CE 24-D (24" Size, 1/4 HP, 120V, 2-Speed, 3400/2770 CFM)
Model #CE 24-D (24" Size, 1/4 HP, 120V, 2-Speed, 3400/2770 CFM)
CE 24-D
38.00



Price: $449.33
Model #CE 30-D (30" Size, 1/4 HP, 120V, 2-Speed, 3950/3080 CFM)
Model #CE 30-D (30" Size, 1/4 HP, 120V, 2-Speed, 3950/3080 CFM)
CE 30-D
42.00



Price: $546.25
