Canarm brand SIG Series Side Intake Filtered Fresh Air Supply Fan or Make-Up Air Fan

Cut Sheet & Performance Chart (568 Kb)

Operation & Maintenance Manual (1.16 Mb)

SIG-9 Submittal (437 Kb)
SIG-10 Submittal (419 Kb)
SIG-12 Submittal (426 Kb)
SIG-15 Submittal (426 Kb)

Options:

Price: $1,075.88

Got Questions or Need a Quote? We're Ready to Help!

Description
Reviews

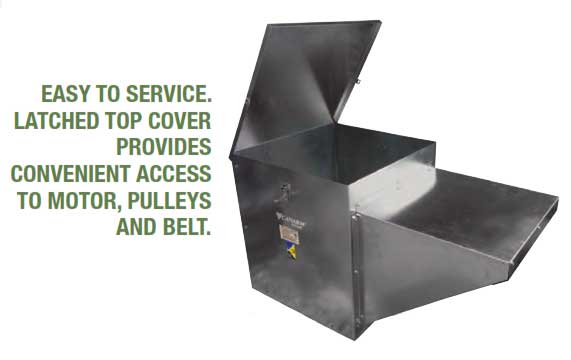

SIG Series: Side Intake Filtered Fresh Air Supply Unit

(Restaurant Rated)

SIG series fresh air supply units are ideal for commercial applications such as schools, apartments and office buildings. They also provide an economical and practical solution to meet NFPA 96 separation requirements between supply & exhaust air streams in commercial kitchen applications.

FEATURES

Flexible forward curved belt drive blowers operate at low speed and low noise levels.

Galvanized steel housing.

Heavy duty ball bearings suitable for -65º to +250º F.

Weatherproof cabinet designed for outdoor roof mounting.
Filters designed with large surface area for efficient filtration.

Washable aluminum mesh filters are located in the intake hood and are accessible through the hood end cap for ease of service.

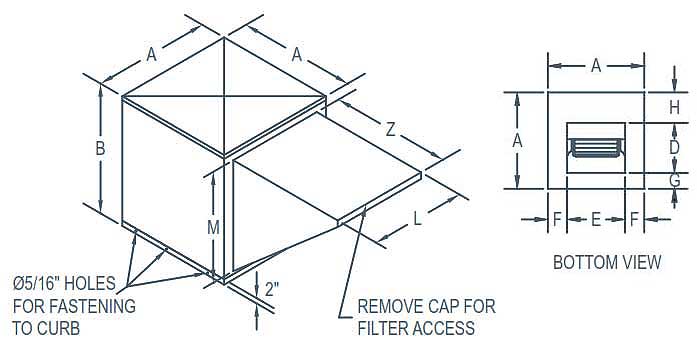

Easy on-site addition of customer supplied air supply duct extension between the intake hood and unit provides additional separation where necessary.

ETL listed.

TYPICAL MAXIMUM CFM @ STATIC PRESSURE
Model	HP	.5” SP	1” SP	1.5” SP	2” SP
SIG-9	1.5	2300	2000	1600	1000
SIG-10	1.5	2600	2400	2100	1800
SIG-12	2	3800	3400	3100	2700
SIG-15	3	5200	4700	4300	3600
