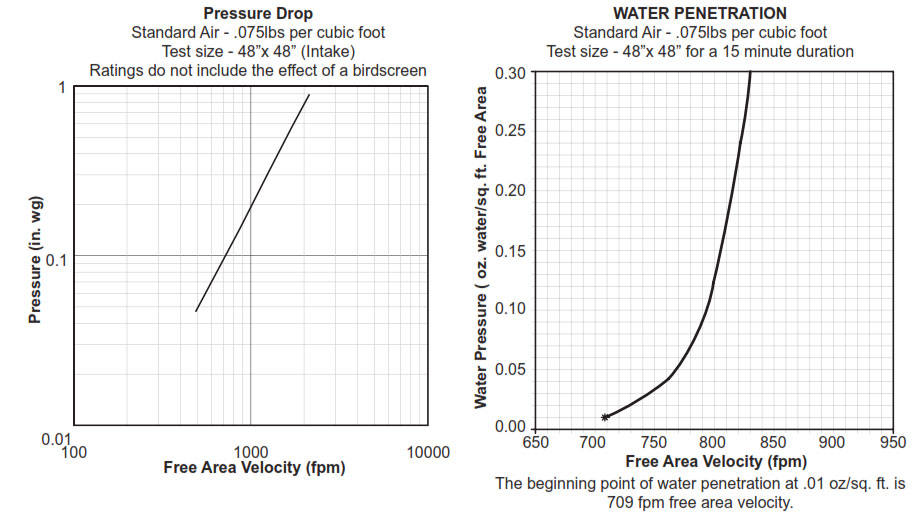

Model GFL Soler & Palau USA brand 4" Deep (Fixed Blade) Fresh Air Architectural Steel Wall Louver - 709 (FPM) Feet Per Minute Free Air Velocity Rating (Beginning Point of Water Penetration) Sizes 18" to 48"

 Soler & Palau USA brand Model GFL fixed louvers are designed to provide good protection from rain and weather at an economical price. The channel frame is 4" deep with K-style non-drainable 45-degree blades. Available in Galvanneal (GFL) and comes standard with a bird screen on the back. Can be used for either fresh air intake or exhaust.

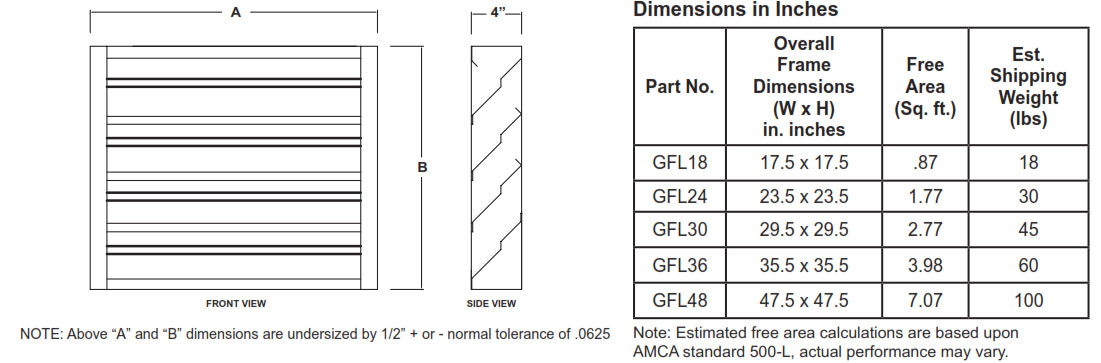

Single panel sizes available: 18" wide x 18" high to 48" wide to 48" high. Panels can be combined together make up large size openings.

 FEATURES

Frame

- 4" deep channel x 16-gauge A-60 galvanneal steel

Blades

- K style, 16gauga A-60 galvanneal steel, positioned at a 45-degree angle and spaced approximately 4" centers.

Construction

-Tabbed

Finish

- Mill

Cut Sheet (296 kb)
