Soler & Palau USA brand Model SQD Square Inline Direct Drive Centrifugal Duct Fan General Application CFM Range: 162 - 2,658 - Single Phase
Price:
$516.36
 APPLICATION |
|
CONSTRUCTION
Housing- Heavy-gauge galvanized steel for extra strength. - Integral inlet and outlet duct collars. - Universal mounting - horizontal, vertical or any angle. - Easy access for service with removable side panels, without disconnecting duct. Centrifugal Wheel - All aluminum backward inclined wheel. - Nonoverloading for safe operation in ducted systems. - Statically and dynamically balanced for smooth operation. - SQD 06 has composite wheel. Motors - Single speed totally enclosed are standard. - All motors are rated for continuous duty. - Standard motors are permanently sealed ball bearing type. - SQD06 has an external rotor motor.   Product Bulletin (550 kb) |
 |
 |

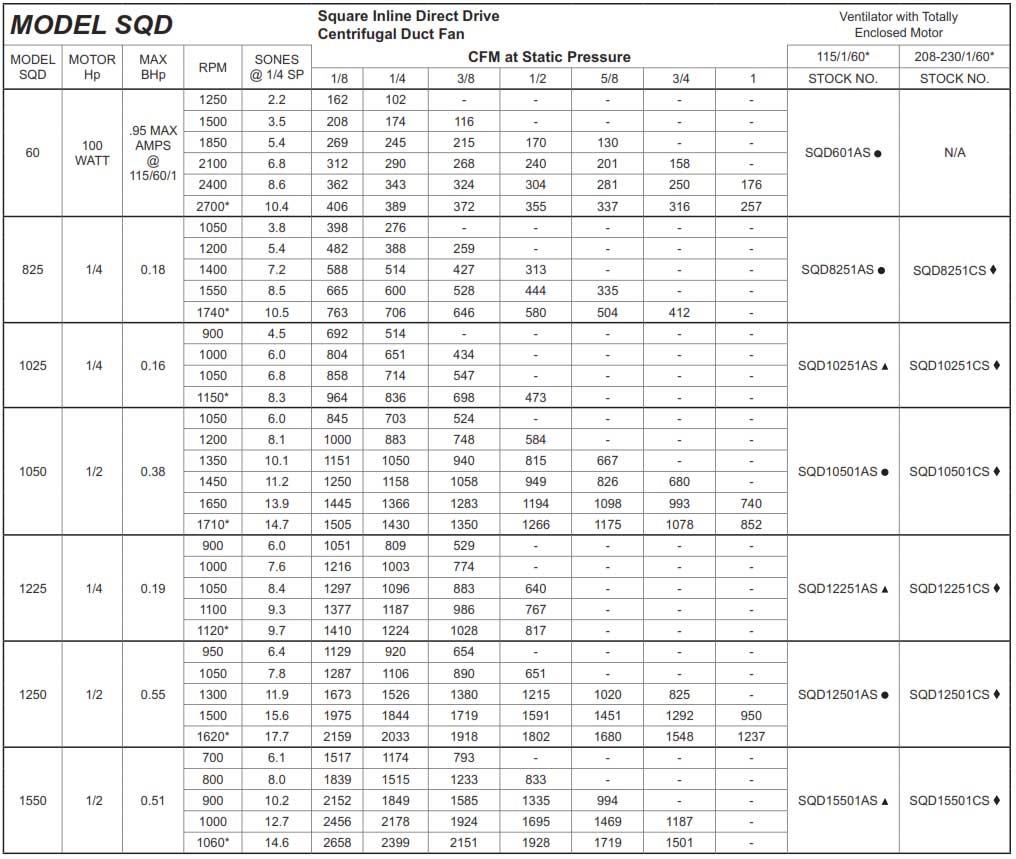

| * True motor speed - other speeds based on speed control use Performance certified is for installation Type B-free inlet, ducted outlet. Power ratings (BHP) do not include transmission losses. Performance ratings do not include the effects of appurtenances (accessories). The sound ratings shown are loudness values in fan sones at 5 feet (1.5M) in a hemispherical free field calculated per AMCA Standard 301. Installation Type A: free inlet hemispherical sone levels. Use 5 Amp Speed Control for motors 1/3 Hp and smaller Use 10 Amp Speed Control for motors 1/2. |
Models SQD601AS, SQD8251AS, SQD8251CS, SQD10251AS, SQD10251CS, SQD10501AS, SQD10501CS, SQD12251AS, SQD12251CS, SQD12501AS, SQD12501CS, SQD15501AS, SQD15501CS
