J&D Manufacturing brand Green Breeze HAF Agricultural Circulation Fan - 3 Models (Vari Speed/CFM Range 1,020-10,050, Size 12" thru 36")
Green Breeze HAF Fan
Greenhouses require a specialized HAF fan, and J&D Manufacturing's Green Breeze is simply the best. The patented easy open front guard drastically reduces the cleaning time and maintenance cost of your fans. The tapered side guard creates a tight air pattern that throws air much further than regular basket fans. Our adjustable mounting bracket attaches directly to the motor yoke to eliminate vibration.
In the winter, use the fan blowing above the plants to move air throughout the greenhouse to create a uniform temperature. Adjust the air pattern and reduce the fan speed towards the plants that you may want to harden before shipping to market. Low velocity air can be used to stimulate hair follicle to improve plant health. The Green Breeze HAF Fan is the most versatile, energy efficient, best valued HAF fan on the market today.
When it comes to transferring electrical energy efficiently into air energy for cooling, air recirculation or air movement, J&D Manufacturing is the world leader.
J&D Manufacturing's circulation fans when applied properly can be used in the following applications:
• Air de-stratification can help reduce heating and cooling bills.
• Consistent air temperature throughout a room or building
• Heat stress relief indoors and outdoors for young and old
• Surface drying (including animal bedding)
• People and animal cooling
• Machine/compressor cooling
• High velocity air cooling
• Insect control
• Air curtains
FEATURES
-
No belts or bearings to maintain.
-
Three winged aluminum blade.
-
Available in 12", 20", 24" and 36".
-
OSHA approved when mounted 7' above floor level.
-
Fan and guards come completely assembled.
-
Exclusive Open Front Guard patented design, cuts maintenance time and costs.
-
Mounting bracket mounts directly to the yoke of motor to eliminate any vibration for smooth fan operation.
-
Provides constant temperature and helps to eliminate hot and cold spots throughout greenhouse.
-
Corrosion resistant white powder coated fan guard.
-
Specially designed guard allows more air flow for optimum air circulation and quiet operation.
-
Variable speed motor for year round air circulation.
-
Attached cord with 3-prong plug.
-
Totally enclosed, maintenance free, direct drive high efficiency motors have completely sealed ball bearings, UL and ULC certification, built in automatic thermal overload protection, covered by a Full Two Year Warranty.
-
Can be used with our misting/fogging product line to reduce temperature and/or increasing humidity for plants.
|
 |
 Model #POWTPB
(Tent/Pole Bracket)
*Sold Seperately
|
 |
|
|

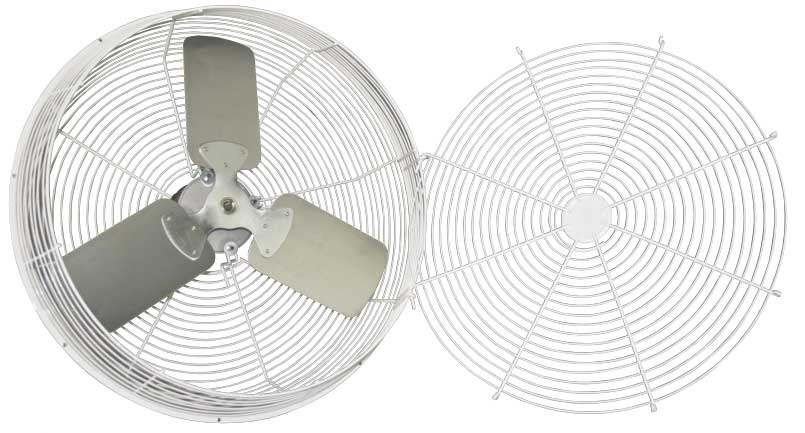

EXCLUSIVE Open Front Guard
The Green Breeze is the only fan on the market with the exclusive open front feature. It's unique design helps cut cleaning time and maintenance costs. No tools. No down time. Back to full energy efficient, high-output operation. U.S. patent No. 5,348,447
|
Model
#VRSBR736-HDG
#VRSBR8-HDG
#VRSBR5-HDG
(Included)
|
| Part# | Size | HP | Volt |
Amps Hi/Low |
HZ | Phs | Spd |
CFM |
CFM/Watt |
Noise DB |
RPM |
Drive | Blade | Cord | Finish | Included Bracket |
| VBG12 | 12" | 1/10 | 115/230 | 1.0/0.5 | 60 | 1 | 1 | 1,020 | 8.8 | 56 | 1,705 | DD | 3-Alum | 10' | White | VRSBR736-U |
| VBG20 | 20" | 1/3 | 115/230 | 4.0/2.0 | 60 | 1 | S/Var | 3,650 | 11.8 | 60 | 1,706 | DD | 3-Alum | 10' | White | VRSBR8-U |
| VBG24 | 24" | 1/2 | 115/230 | 4.8/2.4 | 60 | 1 | S/Var | 5,250 | 12.1 | 62 | 1,716 | DD | 3-Alum | 10' | White | VRSBR5-U |
| VBG36 | 36" | 1/2 | 115/230 | 4.8/2.4 | 60 | 1 | 1 | 10,050 | 17.6 | - | - | DD | 3-Alum | 10' | White | VRSBR6-HDG |
| DD - Direct Drive CFM - Circulation Cubic Feet per Minute | ||||||||||||||||
