Model #FES TPI brand Portable Electric Salamander Heater (9 kW to 60 kW, 30717 to 204780 Max BTUs, 208, 240, 480, 575 & 600V Options) - 13 Models to Choose From

 PORTABLE ELECTRIC SALAMANDER


THE ODORLESS, FLAMELESS ELECTRIC ALTERNATIVE TO PROPANE AND KEROSINE SPACE HEATERS
  • Heater housing has a safety yellow textured powder coated finish and includes protective black finish guards on both air intake and output openings.
  • Long-life finned tubular heating elements, high-limit thermal cutout switch with automatic reset.
  • Control know allows for fan only operation and thermostat adjustments from 40º to 100ºF
  • Fan-forced electric heaters generate 800 to as much as 2500 CFM's
  • 9-30kW units features a built-in rotating stop allowing housing adjustments for up to 90º from center axis.
  • Includes access panel for direct wiring connections.
  • 10" industrial heavy-duty wheels and handle for easy portability over all surface types.
  • 45-60kW units include a factory 10' long pre-wired cable and straight blade range plug optional cord for all other models.
  • ETL Listed for USA & Canada.

APPLICATION SOLUTIONS

  •  Provides temporary climate control for interior jobsite heating.
  • Drywall & building contractors - assist in drying applications.
  • Best interior electric heating product over propane or fossil fuel units.
  • Safe operating unit - operate unit overnight to elevate temperature.
  • Can be operated unattended without any time wasted for refueling.
  • Clean, quite & safe electric fan-forced heater.

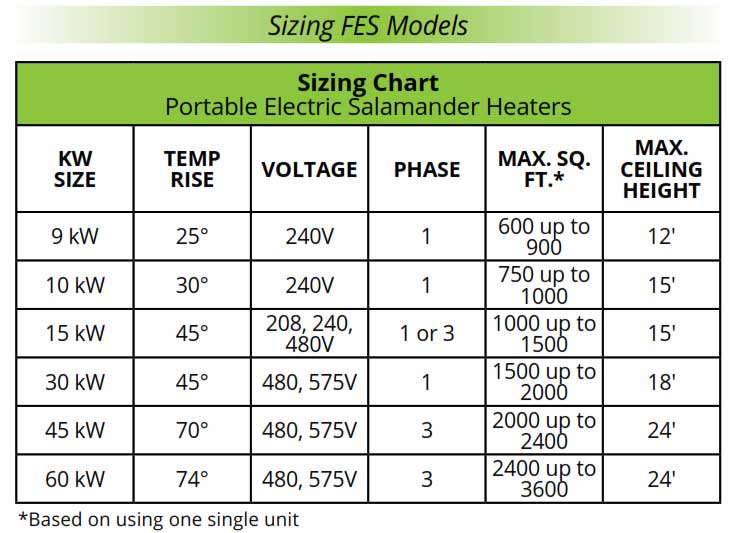

What to know when selecting the correct FES Heater:

1. Determine your operating voltage and electrical phase for your job site.

2. Calculate the square footage of the area to heat (Length x Width)

3. Measure the maximum ceiling height for your area.

4. Know you must have insulation and at least 10-watts.sq.ft. to effectively heat your area. The higher your ceiling the higher watts/sq.ft. needed.

5. Temperature rise is calculated by taking the room temperature then adding the temp rise (see chart);

room temp + temp rise = discharge temp



Printable Manual (124 kb)

Printable Instructions (1,452 kb)

MFG CATALOG NUMBER

MFG MODEL

NUMBER



KW



BTUs



VOLTS



PH



AMPS

TEMP

RISE



CFM



SO TYPE*

WT.

(LBS)

08744302

FES-0924-1C

9

30717

240

1

38

25oF

800

**

55

08860010

FES-1024-1CA

10

34130

240

1

42

30oF

800

**

60

08860110

FES-1520-3A

15

51195

208

3

42

45oF

800

6/4

65

08860710

FES-1524-1A

15

51195

240

1

63

45oF

800

4/3

69

08860210

FES-1524-3E

15

51195

240

3

36

45oF

800

6/4

65

08860310

FES-1548-3E

15

51195

480

3

18

45oF

800

12/4

65

08860410

FES-1560-3A

15

51195

600

3

15

45oF

800

12/4

65

08860510

FES-3048-3A

30

102390

480

3

36

90oF

1100

6/4

83

08860610

FES-3060-3A

30

102390

600

3

29

90oF

1100

6/4

65

08722202

FES-4548-3

45

153585

480

3

55.4

70°F

2200

4/4

198

04874002

FES-4557-3

45

153585

575

3

46.2

70°F

2200

4/4

198

04915302

FES-6048-3

60

204780

480

3

73.5

74°F

2500

2/4

225

04915402

FES-6057-3

60

204780

575

3

61.3

74°F

2500

4/4

225

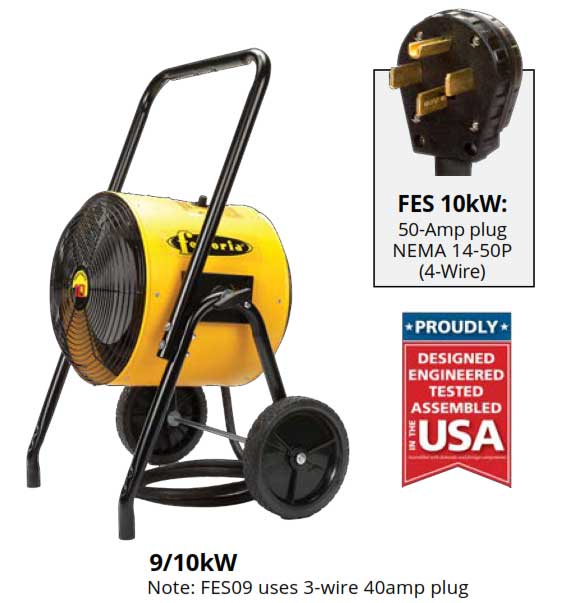

FES-0924-1C (9 Kw, 30,717 BTU's, 240V, 1 Phase, 38 Amps, 25 Deg.F Temp Rise, 800 CFM)
FES-0924-1C (9 Kw, 30,717 BTU's, 240V, 1 Phase, 38 Amps, 25 Deg.F Temp Rise, 800 CFM)
65.00

9 Kw, 30,717 BTU's, 240V, 1 Phase, 38 Amps, 25 Deg.F Temp Rise, 800 CFM

Price: $1,383.06
FES-1024-1CA (10 Kw, 34,130 BTU's, 240V, 1 Phase, 42 Amps, 30 Deg.F Temp Rise, 800 CFM)
FES-1024-1CA (10 Kw, 34,130 BTU's, 240V, 1 Phase, 42 Amps, 30 Deg.F Temp Rise, 800 CFM)
65.00

10 Kw, 34,130 BTU's, 240V, 1 Phase, 42 Amps, 25 Deg.F Temp Rise, 800 CFM

Price: $1,383.06
FES-1520-3A (15 Kw, 51,195 BTU's, 208V, 3 Phase, 42 Amps, 45 Deg.F Temp Rise, 800 CFM)
FES-1520-3A (15 Kw, 51,195 BTU's, 208V, 3 Phase, 42 Amps, 45 Deg.F Temp Rise, 800 CFM)
65.00

15 Kw, 51,195 BTU's, 208V, 3 Phase, 42 Amps, 45 Deg.F Temp Rise, 800 CFM

Price: $1,447.91
FES-1524-1A (15 Kw, 51,195 BTU's, 240V, 1 Phase, 63 Amps, 45 Deg.F Temp Rise, 800 CFM)
FES-1524-1A (15 Kw, 51,195 BTU's, 240V, 1 Phase, 63 Amps, 45 Deg.F Temp Rise, 800 CFM)
69.00

15 Kw, 51,195 BTU's, 240V, 1 Phase, 63 Amps, 45 Deg.F Temp Rise, 800 CFM

Price: $1,447.91
FES-1524-3E (15 Kw, 51,195 BTU's, 240V, 3 Phase, 36 Amps, 45 Deg.F Temp Rise, 800 CFM)
FES-1524-3E (15 Kw, 51,195 BTU's, 240V, 3 Phase, 36 Amps, 45 Deg.F Temp Rise, 800 CFM)
65.00

15 Kw, 51,195 BTU's, 240V, 3 Phase, 36 Amps, 45 Deg.F Temp Rise, 800 CFM

Price: $1,447.91
FES-1548-3E (15 Kw, 51,195 BTU's, 480V, 3 Phase, 18 Amps, 45 Deg.F Temp Rise, 800 CFM)
FES-1548-3E (15 Kw, 51,195 BTU's, 480V, 3 Phase, 18 Amps, 45 Deg.F Temp Rise, 800 CFM)
65.00

15 Kw, 51,195 BTU's, 480V, 3 Phase, 18 Amps, 45 Deg.F Temp Rise, 800 CFM

Price: $1,447.91
FES-1560-3A (15 Kw, 51,195 BTU's, 600V, 3 Phase, 15 Amps, 45 Deg.F Temp Rise, 800 CFM)
FES-1560-3A (15 Kw, 51,195 BTU's, 600V, 3 Phase, 15 Amps, 45 Deg.F Temp Rise, 800 CFM)
65.00

15 Kw, 51,195 BTU's, 600V, 3 Phase, 15 Amps, 45 Deg.F Temp Rise, 800 CFM

Price: $1,447.91
FES-3048-3A (30 Kw, 102,390 BTU's, 480V, 3 Phase, 36 Amps, 90 Deg.F Temp Rise, 1,100 CFM)
FES-3048-3A (30 Kw, 102,390 BTU's, 480V, 3 Phase, 36 Amps, 90 Deg.F Temp Rise, 1,100 CFM)
83.00

15 Kw, 51,195 BTU's, 600V, 3 Phase, 15 Amps, 45 Deg.F Temp Rise, 800 CFM

Price: $2,282.35
FES-3060-3A (30 Kw, 102,390 BTU's, 600V, 3 Phase, 29 Amps, 90 Deg.F Temp Rise, 1,100 CFM)
FES-3060-3A (30 Kw, 102,390 BTU's, 600V, 3 Phase, 29 Amps, 90 Deg.F Temp Rise, 1,100 CFM)
65.00

30 Kw, 102,390 BTU's, 600V, 3 Phase, 29 Amps, 90 Deg.F Temp Rise, 1,100 CFM

Price: $2,396.14
FES-4548-3 (45 Kw, 153,585 BTU's, 480V, 3 Phase, 55.4 Amps, 70 Deg.F Temp Rise, 2,200 CFM)
FES-4548-3 (45 Kw, 153,585 BTU's, 480V, 3 Phase, 55.4 Amps, 70 Deg.F Temp Rise, 2,200 CFM)
198.00

45 Kw, 153,585 BTU's, 480V, 3 Phase, 55.4 Amps, 70 Deg.F Temp Rise, 2,200 CFM

Price: $3,773.15
FES-4557-3 (45 Kw, 153,585 BTU's, 575V, 3 Phase, 46.2 Amps, 70 Deg.F Temp Rise, 2,200 CFM)
FES-4557-3 (45 Kw, 153,585 BTU's, 575V, 3 Phase, 46.2 Amps, 70 Deg.F Temp Rise, 2,200 CFM)
198.00
45 Kw, 153,585 BTU's, 575V, 3 Phase, 46.2 Amps, 70 Deg.F Temp Rise, 2,200 CFM
Price: $3,948.94
FES-6048-3 (60 Kw, 204,780 BTU's, 480V, 3 Phase, 73.5 Amps, 74 Deg.F Temp Rise, 2,500 CFM)
FES-6048-3 (60 Kw, 204,780 BTU's, 480V, 3 Phase, 73.5 Amps, 74 Deg.F Temp Rise, 2,500 CFM)
225.00
60 Kw, 204,780 BTU's, 480V, 3 Phase, 73.5 Amps, 74 Deg.F Temp Rise, 2,500 CFM
Price: $4,154.76
FES-6057-3 (60 Kw, 204,780 BTU's, 575V, 3 Phase, 61.3 Amps, 74 Deg.F Temp Rise, 2,500 CFM)
FES-6057-3 (60 Kw, 204,780 BTU's, 575V, 3 Phase, 61.3 Amps, 74 Deg.F Temp Rise, 2,500 CFM)
225.00
60 Kw, 204,780 BTU's, 575V, 3 Phase, 61.3 Amps, 74 Deg.F Temp Rise, 2,500 CFM
Price: $4,424.63
