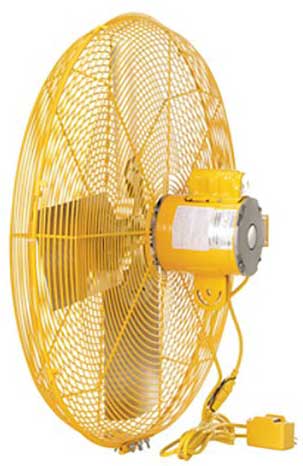

Model #HDH 30-JR TPI brand 30" Maximum Duty Assembled Yellow Air Circulator Fan Head 2-Speed Non-Oscillating (6,800/6,000 CFM), 1/2 Hp, 120V with 5 Different Mounting Options

- Catalog Number 08744602

- Model Number HDH 30-JR

- 30" Propeller Diameter

- 6,800 CFM High / 6,000 CFM Low

- Velocity Profile 8,000 CFM / 270 Sq.Ft.

- 48 lbs.

- Ceiling Mount, I-Beam Mount, Wall Mount, Pedestal Mount,

   and Pole Mount Options Available

- Non-Oscillating

- HDH-JR Series contains a 12' long SJT-Type cord with grounded

  plug and 18" long drop-down cord assembled with an electrical

  (off, on low/high) switch enclosure.

- Steel Construction with safety yellow textured epoxy powder

  coated finish.

- Steel Motor Housing Painted Safety Yellow

- Aluminum, 4 paddle blades

- Coated steel guards with self-locking retaining clips to secure

  front/rear grills and meet OSHA safety requirements.

- Fully-assembled ready for plug & play operation.

- Mounting Brackets Sold Separately.

- 5-year motor warranty.

- Made in the U.S.A. with domestic and foreign components.

MOTOR SPECIFICATIONS

- 120V, 1-Phase, 1/2 Hp, 4 Amps

- Ball Bearing Totally Enclosed

- 2 Speed

- Permanently lubricated

- Permanent Split Capacitor

- 1/2" Shaft
