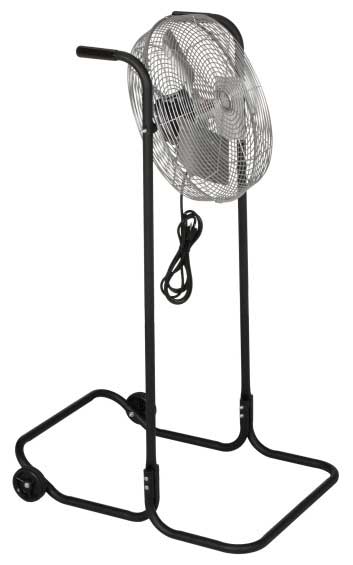

Model #F-24H-TE TPI brand 24" Industrial Workstation High Stand Floor Fan 3-Speed Non-Oscillating (2,100/1,900/1,600 CFM), 1/8 Hp, 120V

- Catalog Number08540602

- Model Number F-24H-TE

- 24" Propeller Diameter

- Three-speed 2,100 CFM High / 1,900CFM Medium / 1,600 CFM Low

- Velocity Profile 3,500 CFM / 150 Sq.Ft.

- 30 lbs.

- High Stand. 53" High x 30" Wide x 27" Deep

- Non-Oscillating

- Steel construction with a silver & black powder coated finish

- Frame Size 42"

- Rotary switch located on the back grill

- Aluminum, 3 paddle blade system with steel hub and cast aluminum

  spider connections

- Coated steel guards with retaining clips

- 1-year limited warranty.

- Made in U.S.A. with domestic and foreign components.

MOTOR SPECIFICATIONS

- 120V, 1-Phase, 1/8 Hp, 2.4 Amps

- Sleeve bearing totally enclosed

- 3 Speed

- Permanently lubricated

- 5/16" Shaft Size
