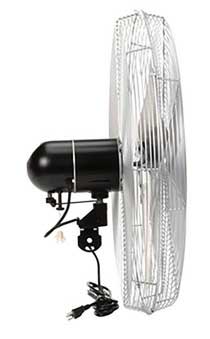

Model #ACH 24-O TPI brand 24" Industrial Oscillating Assembled Air Circulator Fan Head 3-Speed (3,800/3,400/2,700 CFM) 1/4 Hp, 120V, with 3 Different Mounting Options

- Catalog Number 07963602

- Model Number ACH 24-O

- 24" Propeller Diameter

- 3,800 CFM High / 3,400 CFM Med / 2,700 CFM Low

- Velocity Profile 6,000 CFM / 240 Sq.Ft.

- 44 lbs.

- Wall Mount, Pedestal Mount and Pole Mount Options Available

- Oscillating

- Pull Chain Switch and 12' long SJT-Type cord with grounded plug.

- Steel Construction with Silver/Gray Powder Coat

- Steel Motor Housing Painted Black

- Aluminum, 3 paddle blades

- Coated steel guards with self-locking retaining clips to secure

  front/rear grills and meet OSHA safety requirements.

- Fully-assembled ready for plug & play operation.

- Mounting Brackets Sold Separately.

- 1-year limited warranty.

- Made in the U.S.A. with domestic and foreign components.

MOTOR SPECIFICATIONS

- 120V, 1-Phase, 1/4 Hp, 2.5 Amps

- Ball Bearing Totally Enclosed

- 3 Speed

- Permanently lubricated

- Permanent Split Capacitor

- 1/2" Shaft
