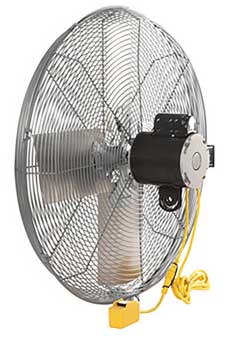

Model #HDH 30-GJR TPI brand 30" Heavy Duty Assembled Air Circulator Fan Head 2-Speed Non-Oscillating (6,800/6,000 CFM), 1/2 Hp, 120V, 18" drop down cord assembly (off, on low/high) switch with 6 Different Mounting Options

- Catalog Number 08745102

- Model Number HDH 30-GJR

- 30" Propeller Diameter

- 6,800 CFM High / 6,000 CFM Low

- Velocity Profile 8,000 CFM / 270 Sq.Ft.

- 48 lbs.

- Ceiling Mount, I-Beam Mount, Wall Mount, Pedestal Mount,

  Suspension Mount and Pole Mount Options Available

- Non-Oscillating

- HDH-GJR Series contains a 12' long SJT-Type cord with

  grounded plug and 18" long drop-down cord assembled

  with an electrical (off, on low/high) switch enclosure

- Steel Construction with Silver/Gray Powder Coat

- Steel Motor Housing Painted Black

- Aluminum, 3 paddle blades

- Coated steel guards with self-locking retaining clips to secure

  front/rear grills and meet OSHA safety requirements.

- Fully-assembled ready for plug & play operation.

- Mounting Brackets Sold Separately.

- 5-year limited warranty.

- Made in the U.S.A. with domestic and foreign components.

MOTOR SPECIFICATIONS

- 120V, 1-Phase, 1/2 Hp, 4 Amps

- Ball Bearing Totally Enclosed

- 2 Speed

- Permanently lubricated

- Permanent Split Capacitor

- 1/2" Shaft
