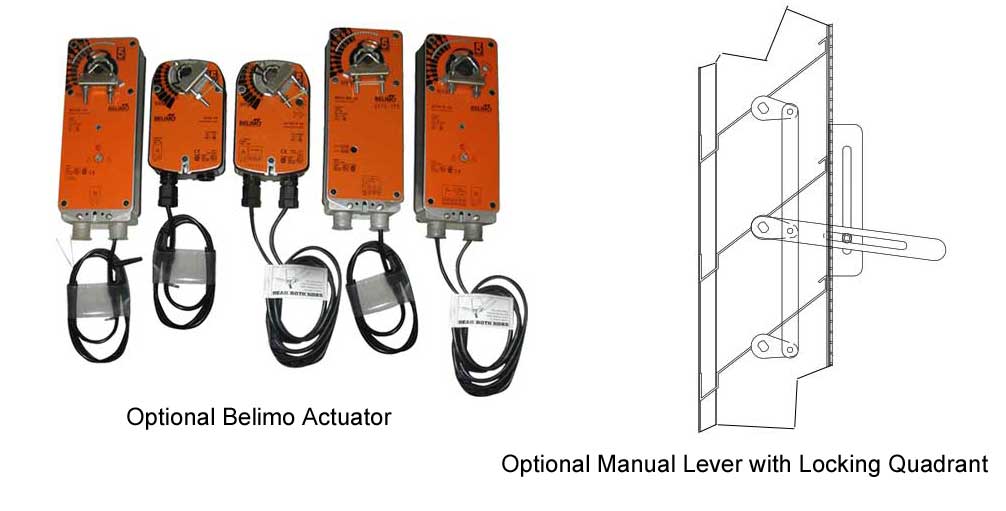

Canarm Ltd. brand 5" Deep Steel Control Damper with Installed Manual Operating Lever with Locking Quadrant or Belimo 115/230V Power Open Spring Return Actuator (Sizes 12" to 48") - Custom Sizes Available
Price:
$89.90
|
The SCD series dampers are used for airflow control and balancing of commercial HVAC systems. Parallel or opposed blade designs coupled with a variety of electric, manually operated or pneumatic actuators allow you to customize your damper to your specifications. The SCD series rigid frame and integrally braced corners provide true damper alignment that greatly resists being installed out of square or out of flat. Available in either parallel or opposed blade models. SCD dampers less than 48" wide x 12" high are furnished with a low profile flat top and bottom to maximize free area. Dampers may be made to accommodate higher than the recommended 2.5" w.g. static pressure. Contact Customer service at 317-531-1638 |
FEATURES
- FRAME: roll-formed galvanized steel hat section with staked corners with integral bracing.
- BLADE: 16-18 gauge triple-vee profile roll-formed galvanized steel. Minimum width: 4.25”. Maximum width: 7.25”. Opposed blades are standard (for parallel, please specify).
- BEARINGS: bronze oilite, press fit into frame.
- AXLES: square, plated steel.
- LINKAGES: concealed in frame. Leakage bars are 12 gauge thick galvanized steel.
- FINISH: mill galvanized.
- EXTENDED SHAFT: 0.5” diameter, plated steel.
- MAXIMUM TEMPERATURE: 250ºF.
- SIZES: Minimum size: 5” W x 4” H; Maximum size: single section - 48” W x 72” H; Multiple section - unlimited size.
Cut Sheet (136 kb)
*** Custom Sizes, Rectangular Sizes, Low Voltage Actuators and Modulating Actuators Are Also Available. Please Contact Customer Service 317-531-1638***
